How to identify a live cartridge vs. a spent cartridge
For anyone involved in shooting, reloading, or simply working with firearms, the ability to correctly identify a live cartridge from a spent casing is a critical safety skill. The visual differences can be subtle, and a misidentification can have serious consequences. This comprehensive guide will walk you through the anatomy of a 9mm round, the key indicators of its status, and how to stay safe while making your assessment.
Disclaimer: For safety, always treat every round as if it were live until you have 100% confirmation otherwise. If there is ever any doubt, assume it is live and handle it with extreme caution. This guide is for educational and identification purposes only and should not be used as a substitute for proper firearms training.
Understanding the live cartridge
Before we can distinguish a live round from a spent casing, we need to understand the four primary components of a live 9mm cartridge:
- Case: The metal (usually brass) container that holds all the components together.
- Primer: The small, circular explosive component located in the center of the case's base.
- Propellant (Gunpowder): The powder inside the case that, when ignited by the primer, creates the expanding gas pressure to push the bullet out.
- Bullet (Projectile): The actual projectile that exits the barrel when the firearm is discharged.
A spent casing, on the other hand, is the result of a cartridge being fired. It is missing the bullet and the propellant, with only the case and a now-inert primer remaining.
Key indicators: Live vs. Spent
There are two primary visual indicators that separate a live round from a spent one: the presence of the bullet and the condition of the primer.
1. The bullet: present vs. absent
- Live Round: A live 9mm cartridge has a bullet (projectile) seated firmly in the open end of the case. The bullet will be made of lead, or a lead core with a copper jacket.
- Spent Casing: A spent 9mm casing will have no bullet. It is just the hollow brass case.

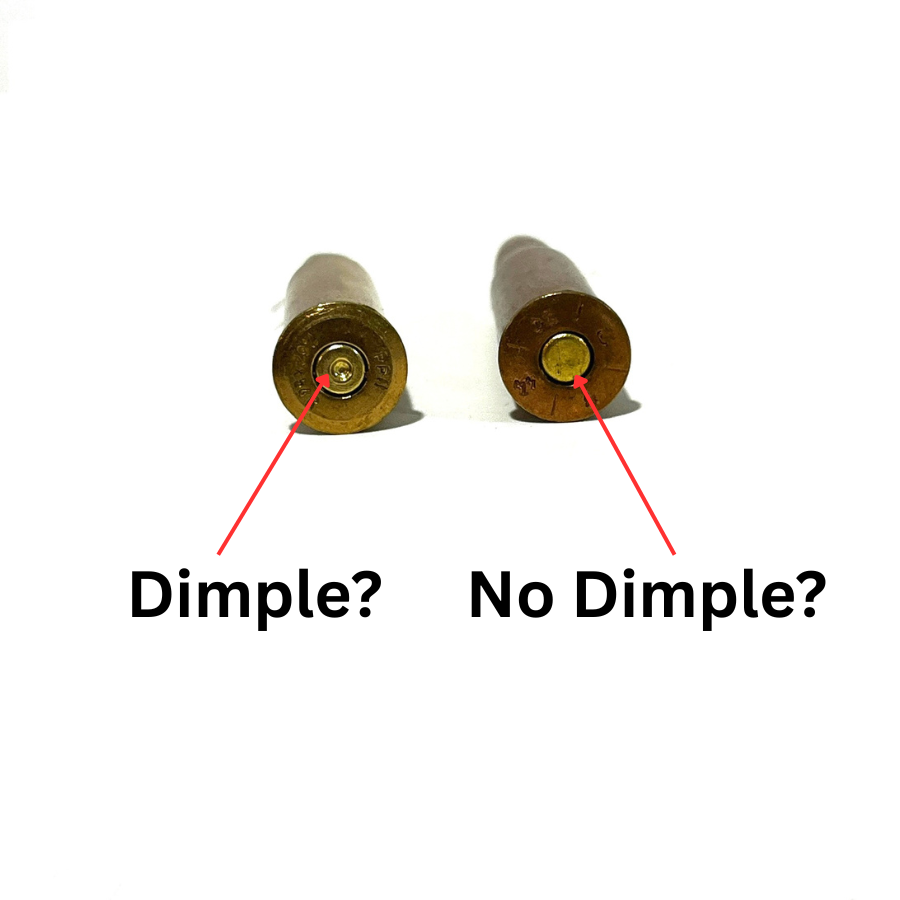

2. The primer: dimple vs. no dimple
This is the most critical and often most subtle difference. The primer's condition tells the story of whether the round was successfully fired.
- Live Round: The primer on a live, unfired round will be perfectly smooth, with no indentations. It is untouched and ready to be struck by a firing pin.
- Spent Casing: A spent casing will have a clear, distinct indentation in the center of the primer. This dent is made by the firearm's firing pin when it strikes and ignites the primer.
What about a misfire? The "dud" round
It's important to understand the exception to the rule. What if you find a round with both a bullet and a primer that has a firing pin indentation?. This is what's known as a "dud" or misfire.
- Dud Round: A misfire can occur for several reasons, such as a defective primer, a weak firing pin strike, or other mechanical issues. A dud is still a live round because it contains propellant and a bullet, and the primer could still potentially detonate.
- Safety Precaution: Never assume a dud is completely safe. If you encounter one, handle it with the utmost care, following all firearm safety protocols for a live round.
Identifying other types of ammunition
Beyond the basic live round and spent casing, you may also encounter other types of 9mm ammunition.
- Blanks: A blank cartridge produces sound and flash but has no bullet. Blanks can be identified by their star-crimped case mouth, which holds a paper or plastic wad instead of a bullet. Note: Blanks can still be dangerous at close range due to the wad and the high-pressure gas.
- Dummy Rounds: Used for training purposes, dummy rounds are inert and cannot be fired. They often look like live rounds but can be distinguished by specific markings, such as a hole drilled into the case, or a BB or spring inside that rattles when shaken. Some dummy rounds have a dimpled primer to indicate they are inert.
- Snap Caps: A specific type of dummy round designed to be used in dry-fire practice. They protect the firearm's firing pin from damage caused by repeated striking without a round in the chamber.
A quick reference chart: live vs. spent ammunition
| Feature | Live Round | Spent 9mm Casing |
|---|---|---|
| Projectile (Bullet) | Yes, a bullet is seated in the case. | No, the case is empty. |
| Primer | Smooth and untouched, no indentation. | Has a clear indentation (dimple) from the firing pin. |
| Case Interior | Filled with gunpowder. | Empty, with potential powder residue. |
Final thoughts on safety
In any situation involving ammunition, safety must be your top priority. While this guide provides the technical knowledge to differentiate between live and spent rounds, it is not a substitute for proper training and vigilance. Always:
- Follow the four fundamental rules of firearm safety.
- Assume a round is live until you can confirm otherwise.
- Never attempt to "fix" or alter a potentially live round.
- Consult a professional or proper authority for the safe disposal of dud ammunition.
By understanding the key components and visual indicators of ammunition, you can work more safely and with greater confidence. Stay vigilant, stay informed, and always prioritize safety over all else.
